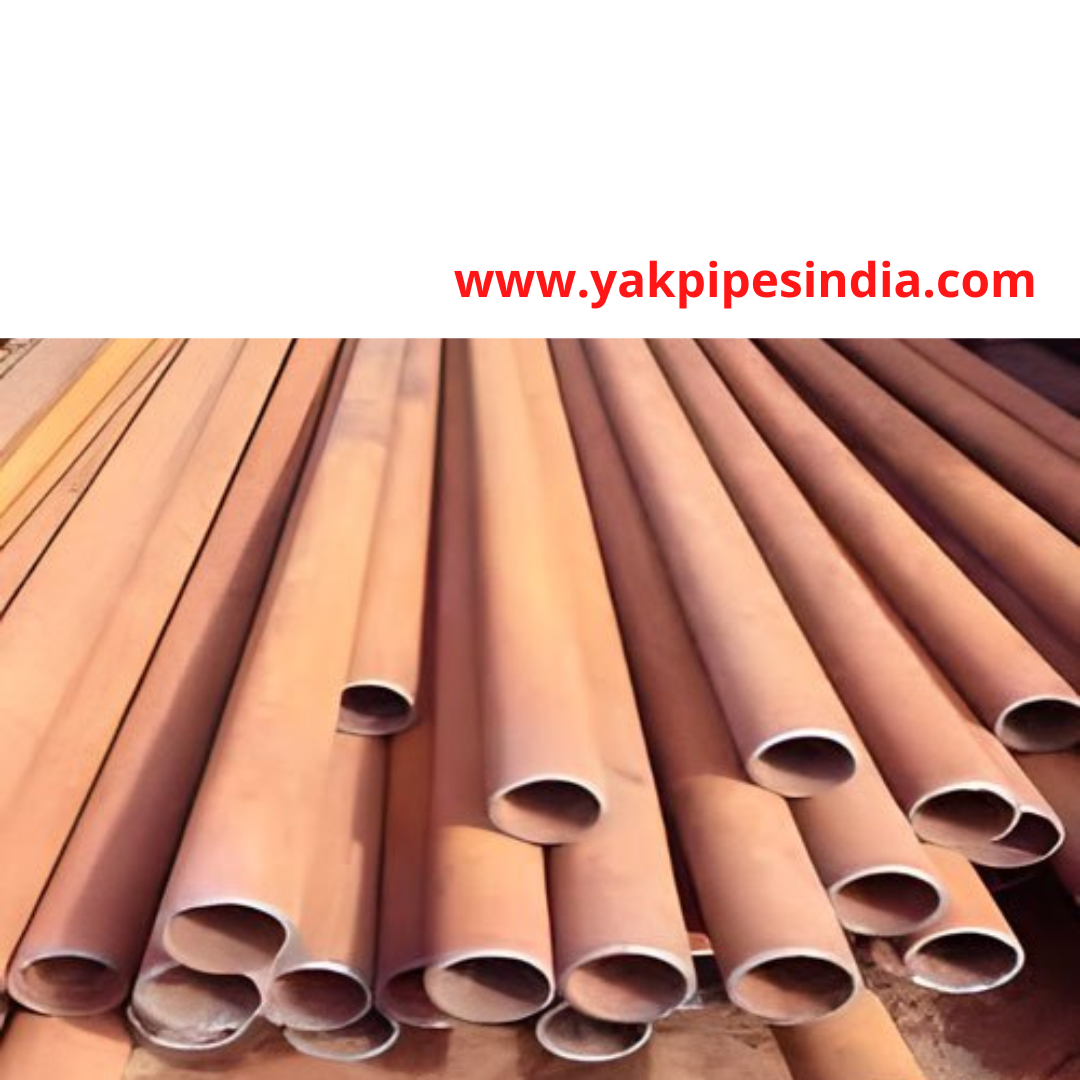

Corten Steel Pipe
Corten Steel or more accurately,
Atmospheric Corrosion Resistant Steel, is a steel alloy consisting of copper
chromium. This is weather resistant steel, which is also known as Corten steel.
As compared with other unalloyed steels, Corten Steel shows better resistance
levels to atmospheric weathering. Because of the chemical composition of Corten
Steel, when it is exposed to weather, on its surface, a protective layer is
formed. What it actually means is that, in order for Corten Steel to be able to
form its protective coating, the steel rusts. There are many Corten Steel pipe suppliers available today, as this substance
has many uses, as it is in big demand in highly corrosive environments.
Corten Steel is used in a large number of
industries today and these include: oil & gas plants, petrochemical
industry, sugar plants, construction, nuclear power plant, building industry,
cement industry, oil mills, chemical plants, power plants, refineries, paper
industry, defense, fertilizer industry, engineering companies, steel plants,
breweries, shipbuilding industry and mining. Today, Corten Steel tube suppliers have available all kinds of ready
stocks of pipes made from Corten Steel. Whether the requirement is big or
small, these suppliers of pipes made from Corten Steel, will ensure that it
will be met. Initially, the rust color of Corten Steel is bright orange. This
is the color seen on ordinary carbon steel, as well as on weathering steel. But
after years and years of exposure to the elements, it takes on a
brown/red-orange look.
Cor-ten is a high strength, low alloy, weldable
structural steel possessing excellent weathering resistance. It may be used to
advantage in painted or unpainted condition. The steel owes its weathering
resistance to the formation of a protective oxide coating which seals the
surface against further corrosion. The coating is of a dark brown appearance
and if chipped or damaged, repairs itself to give continuity of protection and
appearance.
Corten Steel ASTM A423 Seamless Pipes & Tubes Chemical
Composition (heat analysis, %)
|
In order to obtain fine grain structure a
sufficient amount of nitrogen absorbing elements is added (e.g. ≥0.02% Al).
Corten Steel ASTM A423
Gr.1 Seamless Pipes & Tubes Mechanical Properties, in the state of delivery
condition
At room temperature for plates ≥3mm in thickness
(transverse test specimans, according to EN 10002). Requirements to hot rolled
plates ≤3mm in thickness according to EN 10025-5.
|
*) 1 Mpa = 1N/mm2
In case of cold rolled material the yield point
is min. 310 Mpa and the tensile strength min. 445 MPa. Furthermore cold rolled
sheets ≤3mm in thickness made of steel grade COR-TEN A-F for increased demand
to the cold formability is available.
Mechanical properties
of Corten Steel ASTM A423 Seamless Pipes & Tubes
- Yield point min. 275 Mpa
- Tensile strength min. 410
Mpa
- elongation min. 25%
- Tolerances on dimensions and
shape according to EN 10131.
|
*) 1 Mpa = 1N/mm2
EQUIVALENT SPECIFICATIONS
|
Material # |
EN 10155 |
SEW 087 |
NFA 35-502 |
UNI |
BS 4360 |
UNE |
ASTM |
JIS G3114 |
|
1.8961 |
S235J2W |
WTSt 37-3 |
E 24 W 4 |
Fe 360 DK 1 |
- |
- |
- |
- |
|
1.8945 |
S355J0WP |
E 36 WA 3 |
Fe 510 C1K1 |
WR 50 A |
- |
- |
- |
- |
|
1.8946 |
S355J2WP |
- |
E 36 WA 4 |
Fe 510 D1K1 |
- |
- |
A 242 Type 1 |
- |
|
1.8959 |
S355J0W |
- |
E 36 WB 3 |
Fe 510 C2K1 |
WR 50 B |
- |
A 588 - A 242 Gr. 1 |
SMA 50 AW |
|
1.8963 |
S355J2G1W |
WTSt 52-3 |
- |
Fe 510 D2K1 |
WR 50 C |
- |
A 588 Gr. A |
to |
|
1.8965 |
S355J2G2W |
- |
- |
- |
- |
- |
- |
SMA 50 CP |
|
1.8966 |
S355K2G1W |
- |
E 36 WB 4 |
- |
- |
- |
A 709 Gr. 50 W |
- |
|
1.8967 |
S355K2G2W |
- |
- |
- |
- |
- |
- |
- |
CORROSION RESISTANT AND WEATHER RESISTANT
STEEL CAN BE ALSO SUPPLIED ACCORDING TO FOLLOWING STANDARD & SPECIFICATIONS
:
- COR-TEN® A, COR-TEN®A,
COR-TEN A, CORTEN-A, CORTEN A
- COR-TEN® B, COR-TEN®B,
COR-TEN B, CORTEN-B, CORTEN B
- ASTM A588 Grade A, ASTM A
588 Grade-A, ASTM A-588 Grade A
- ASTM A588 Grade B, ASTM A
588 Grade-B, ASTM A-588 Grade B
- ASTM A588 Grade C, ASTM A
588 Grade-C, ASTM A-588 Grade C
- ASTM A242 Type 1, ASTM A242
Type-1, ASTM A-242 Type 1
- S355JOWP EN 10025-5,
S355JOWP EN10025-5, S355 JOWP EN-10025-5
- S355JOWP+N EN 10025-5,
S355JOWP+N EN10025-5, S355 JOWP+N EN-10025-5
- S355J2W EN 10025-5, S355J2W
EN10025-5, S355 J2W EN-10025-5
- S355J2W+N EN 10025-5,
S355J2W+N EN10025-5, S355 J2W+N EN-10025-5
- S355J2G1W EN 10155,
S355J2G1W EN10155, S355 J2G1W EN-10155
- S355K2G1W EN 10155,
S355K2G1W EN10155, S355 K2G1W EN-10155
- S355J2G2W EN 10155,
S355J2G2W EN10155, S355 J2G2W EN-10155
- S355K2G2W EN 10155,
S355J2G2W EN10155, S355 K2G2W EN-10155
- SAILCOR IRSM41, IRSM-41,
IRS-M41, IRS-M41, IRS M41-97 FOR RAILWAY WAGON & CONTAINER
- JIS G3125 SPA-H, JIS
G3125-SPAH, JIS:G3125-SPA-H, JIS-G3125 Grade SPA-H, G3125-SPAH
Common standard:
- API, ASTM A519, A179, A192 (
1010, 1020, 1026, 1045, 4130, 4140, 4145H, 8620, 4340 etc)
- DIN 1629, EN 10297, EN
10216, DIN 2391, EN 10305 ( ST35, ST37.4, ST45, ST52, 30CrMo4, 42CrMo4,
E355 etc)
- JIS G3441, JIS 3445 (
SCM430, SCM 440, STKM 11 to STKM 13 etc)
- GB 8162, GB 3639
·
Corten
steel pipe for sale
|
Corten Steel Seamless Pipe |
Corten Steel Welded Pipe |
|
Corten Steel Exhaust Pipe |
Corten Steel Pipe material |
|
Corten Steel Weld Pipe |
Corten Steel Lined Pipe |
|
Corten Steel Square Pipe |
Corten Steel Clad Pipe |
|
Corten Steel Flex Pipe |
Corten Steel Rectangle Pipe |
|
Corten Steel Square Pipe |
Corten Steel Hollow Pipe |
|
Corten Steel Thick Wall Pipe |
SCH40 Corten Steel pipe |
|
Corten Steel Thin Wall Pipe |
Corten Steel Round Pipe |
|
Corten Steel Thin Wall Pipe |
Corten Steel Coiled Tubing |
|
Corten Steel Capillary Tube |
Corten Steel Heat Exchanger Tubes |
|
Corten Steel tubes |
Corten Steel boiler tube |
|
Corten Steel Rectangle Tube |
Corten Steel tubing |
|
Corten Steel Seamless Tubes |
Corten Steel Round Tube |
|
Corten Steel Condenser Tubes |
Corten Steel Welded Tubes |
·
Supplier of Thin Corten Steel Tube, Exporter
and trader of small diameter Corten Steel tube, We are the distributor of a
seamless Corten Steel tube. As India's largest independent stockholders
and stockists of large-diameter hollow Corten Steel tubes, it's easy to see
why our customers become our lifelong partners.
